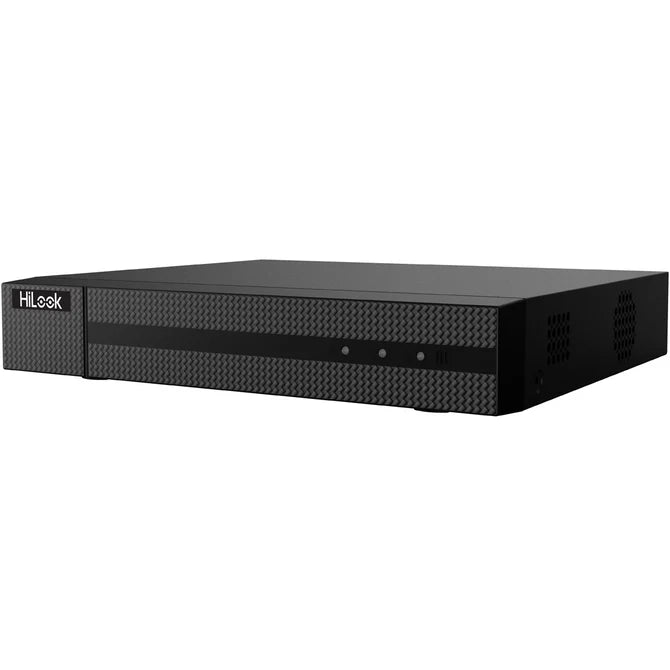

The HiLook DVR 216G M1/T is a sleek compact 1U digital video recorder that delivers Full HD quality recording at 1080p Lite resolution. Featuring support for up to four analog channels alongside two IP channel with up to 2 MP resolution it allows seamless integration with traditional analog cameras including HD TVI CVI AHD and CVBS as well as modern IP systems. The built in HDMI and VGA outputs offer flexible display options ensuring compatibility with a wide range of monitors.

Built for intelligence and efficiency the DVR incorporates Motion Detection 2.0 which uses deep learning to distinguish between human and vehicle movement significantly reducing false alarms triggered by irrelevant motion such as swaying trees or shifting light. Combined with highly efficient H.265 Pro Plus or Pro compression it delivers exceptional storage savings and enhanced video clarity while offering simultaneous HDMI and VGA output for live monitoring.

Connectivity and usability are at the heart of this model. It supports one SATA drive with up to 4 TB capacity and two USB 2.0 ports for local storage and backup. Network features include support for TCP IP DHCP DDNS Hik Connect and secure HTTPS access with support for up to 32 remote connections. Robust enough for home use yet scalable for small businesses the DVR operates within a standard −10 °C to +55 °C range offers low power consumption and maintains a compact lightweight form factor.

Features:

• Deep learning based human and vehicle targets classification of Motion Detection 2.0
• H.265 Pro+/H.265 Pro/H.265 video compression
• HDTVI/AHD/CVI/CVBS/IP video inputs
• Audio via coaxial cable
• Up to 18-ch IP camera input (up to 5 MP)
• Up to 1080p Lite@15 fps encoding capability
• Support all channels HDTVI two-way audio technology
• Dimensions 263 × 225 × 48 mm
